Sale!

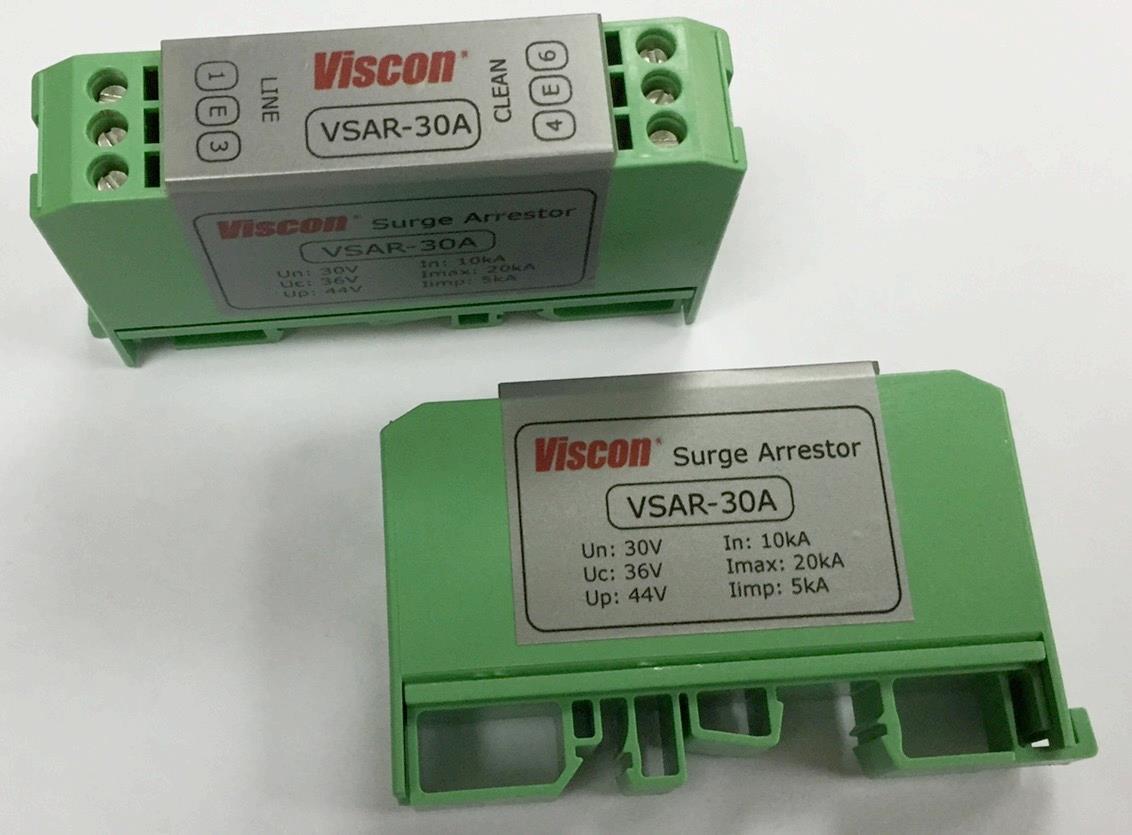

Viscon SAR Surge Protection Device
- Built in DIN-rail type for easy mounting.
- Suitable for any types of telephone and data lines.
- 2-pair version.
- Ultra-low in-line resistance 0.05 Ohm.
- Strong, flame retardant housing.
- Very high maximum current.
- Repeated protection in lightning intense environment.
- Full mode design can handle partial lightning currents.
- Comply to IEC61321-1/61643-21.
Product Detail
Viscon SAR Surge Protection Device
Features & Benefits
- Built in DIN-rail type for easy mounting.
- Suitable for any types of telephone and data lines.
- 2-pair version.
- Ultra-low in-line resistance 0.05 Ohm.
- Strong, flame retardant housing.
- Very high maximum current.
- Repeated protection in lightning intense environment.
- Full mode design can handle partial lightning currents.
- Comply to IEC61321-1/61643-21.
Application
Suitable to protect system that uses higher running current such as system with DC power line or with very long signal lines.

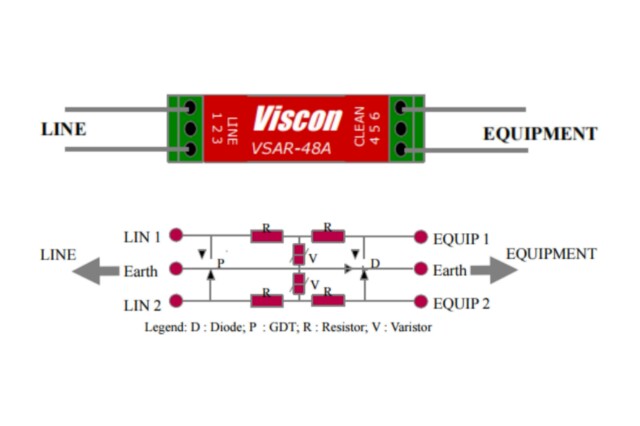

Installation
Connect surge protector in series with power or signal line to protect the equipment or system.

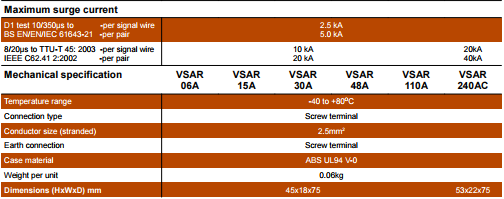

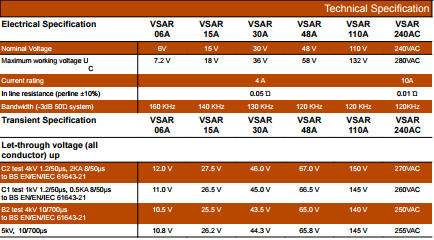

Data Sheet
Viscon SAR Data Sheet
| Weight | 0.06 kg |
|---|---|

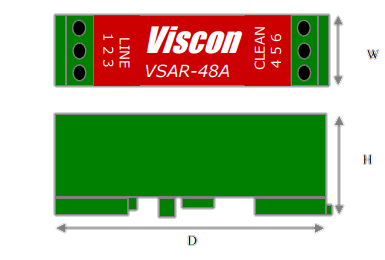

| Dimensions | N/A |
| AMP | 06A, 15A, 30A, 48A, 110A, 240AC |
